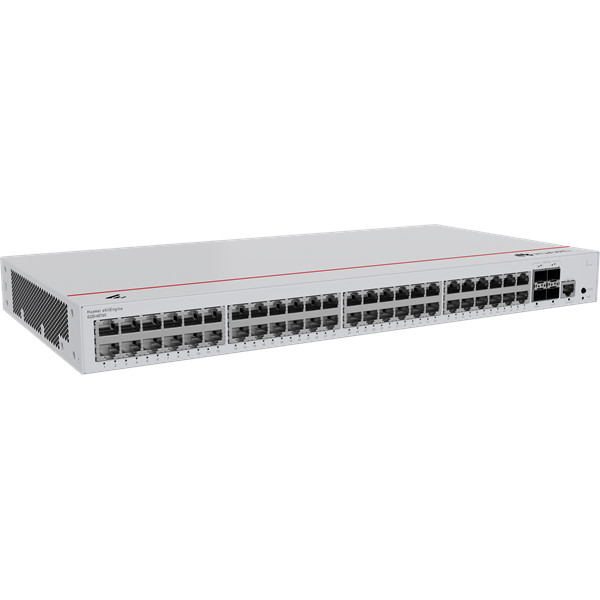

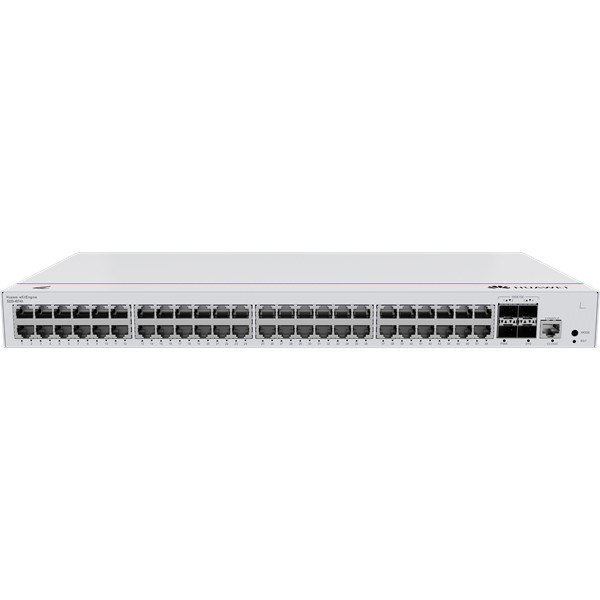

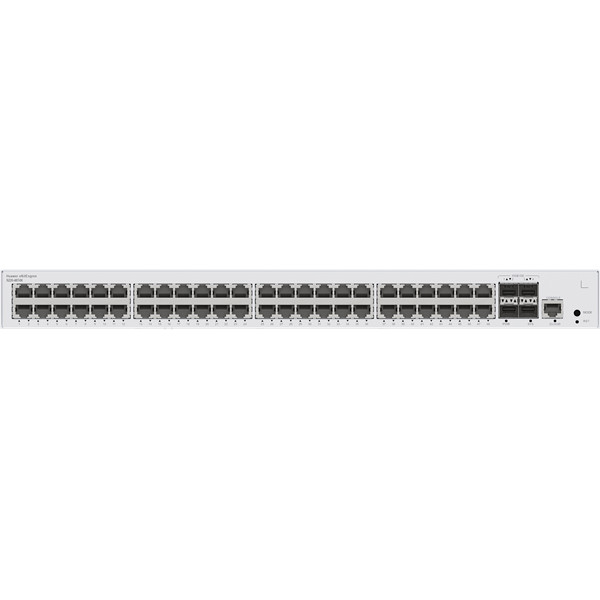

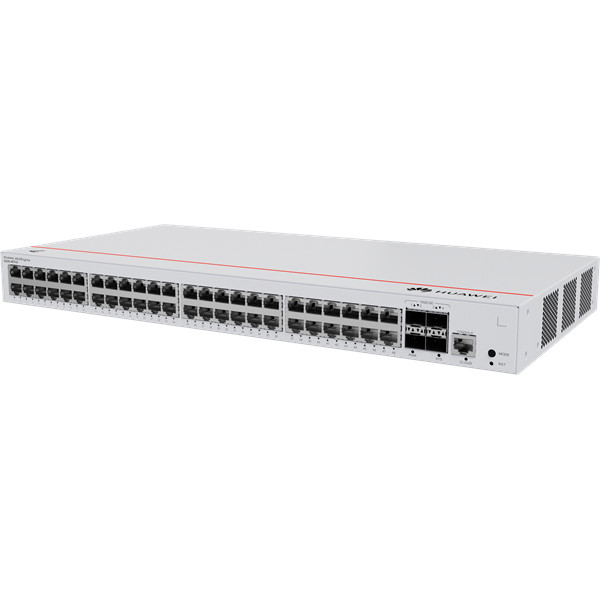

Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
16
Nettó listaár: 128 640 Ft

(bruttó 163 373 Ft)



Nettó listaár: 107 880 Ft

(bruttó 137 008 Ft)


Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X

16
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X
Raktáron 5 db
16
Nettó listaár: 128 640 Ft

(bruttó 163 373 Ft)



Nettó listaár: 107 880 Ft

(bruttó 137 008 Ft)


Megtakarítás 26 365 Ft
Huawei eKit Switch 48x1000Mbps + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-48T4X

Garancia: 5 év el- és visszaszállításos alkatrészcsere-garancia


Egyedi árazási igény illetve műszaki, konfigurációs, kompatibilitási kérdés esetén kérjük vegye fel velünk a kapcsolatot email-ben vagy telefonon.
Részletek
First supported version V600R023C00
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1
Installation type Rack mounting,Desk mounting,Wall mounting
Chassis material Metal
Weight without packaging [kg(lb)] 2.71 (5.97)
Weight with packaging [kg(lb)] 3.59 (7.91)
Typical power consumption [W] 36.95
Typical heat dissipation [BTU/hour] 126.07
Maximum power consumption [W] 44.3
Maximum heat dissipation [BTU/hour] 151.15
Static power consumption [W] 18.8
100% power consumption [W] 36.95
MTBF [year] 40.61
MTTR [hour] 2
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 46.6
Noise at high temperature (acoustic power) [dB(A)] 54.3
Noise at normal temperature (acoustic pressure) [dB(A)] 34.6
Number of fans modules 1
Maximum number of physical ports on the entire device 52
Maximum number of GE ports 52
Maximum number of FE ports 48
Uplink ports 4 x 10GE SFP+ ports
Downlink ports 48 x 10/100/1000BASE-T ports
Dedicated stack port Not supported
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40°C (104°F).
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A] 1.6 A
CPU 1.1 GHz, 2 cores
Memory 2 GB
Flash memory Physical space: 1 GB
Console port RJ45
Eth Management port Not supported
USB Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from left and air exhaust from right
PoE Not supported
Certification EMC certification Safety certification Manufacturing certification
Adatok
Gyártó:
Huawei eKit
Gyártói cikkszám:
98012377
EAN:
6901443450091
Garancia:
36 hónap
Gyártó:
Huawei eKit
Rack-be szerelhető:
Van
Portok száma:
52
Port típusa:
1Gb Réz;10Gb SFP+
PoE (Power over Ethernet):
Nincs
EAN:
6901443450091
KSH szám:
8517620000
SFP port:
4
