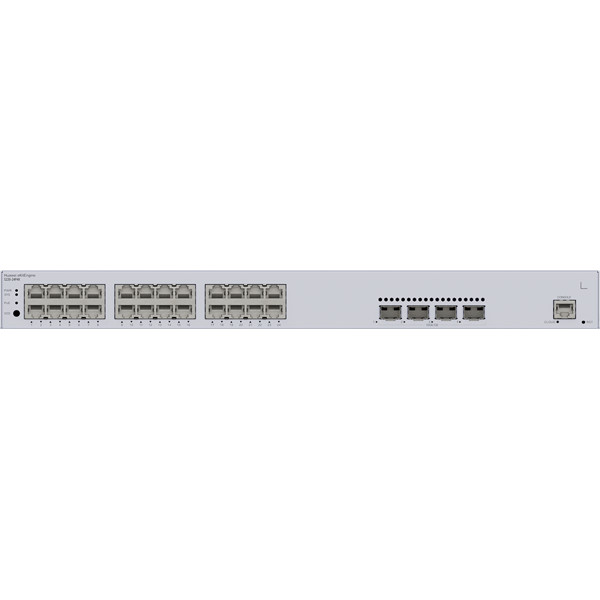

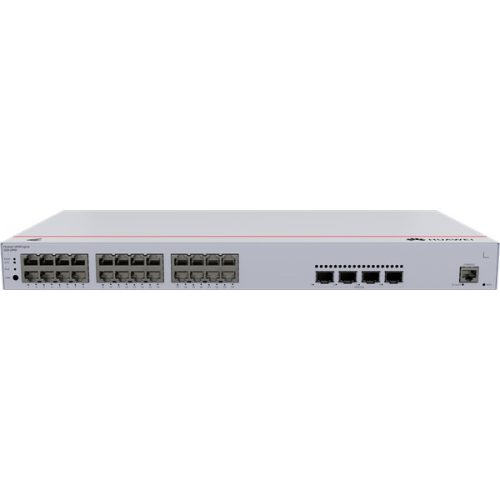

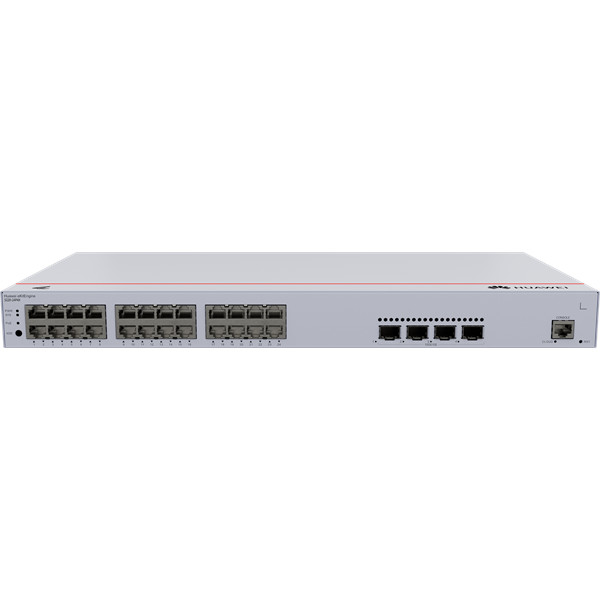

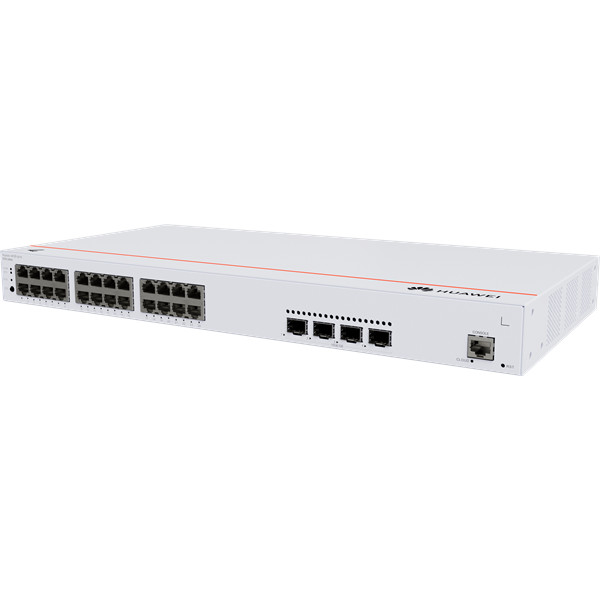

Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
14
Nettó listaár: 138 600 Ft

(bruttó 176 022 Ft)



Nettó listaár: 119 880 Ft

(bruttó 152 248 Ft)


Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X

14
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X
Raktáron 7 db
14
Nettó listaár: 138 600 Ft

(bruttó 176 022 Ft)



Nettó listaár: 119 880 Ft

(bruttó 152 248 Ft)


Megtakarítás 23 774 Ft
Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x10GE SFP+ + 1konzol port, Layer2 managed, Rackes - S220-24P4X

Garancia: 5 év el- és visszaszállításos alkatrészcsere-garancia


Egyedi árazási igény illetve műszaki, konfigurációs, kompatibilitási kérdés esetén kérjük vegye fel velünk a kapcsolatot email-ben vagy telefonon.
Részletek
First supported version V600R023C00
Integrated fixed device Y
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1
Installation type Rack mounting,Desk mounting,Wall mounting
Chassis material Metal
Weight without packaging [kg(lb)] 2.92 (6.44)
Weight with packaging [kg(lb)] 3.79 (8.36)
Typical power consumption [W] 37.12
Typical heat dissipation [BTU/hour] 126.65
Maximum power consumption [W] - Without PoE: 44.35 W - Full PoE load: 485.91 W (PoE: 400 W)
Maximum heat dissipation [BTU/hour] - Without PoE: 151.32 - Full PoE load: 1657.92
Static power consumption [W] 27.07
100% power consumption [W] 37.12
MTBF [year] 60.18
MTTR [hour] 2
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 49.3
Noise at high temperature (acoustic power) [dB(A)] 63
Noise at normal temperature (acoustic pressure) [dB(A)] 37.3
Number of fans modules 2
Maximum number of physical ports on the entire device 28
Maximum number of 10GE ports 4
Maximum number of 2.5GE ports 0
Maximum number of GE ports 28
Maximum number of FE ports 24
Uplink ports 4 x 10GE SFP+ ports
Downlink ports 24 x 10/100/1000BASE-T ports (400 W, PoE+)
Dedicated stack port Not supported
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] - AC input: 100 V AC to 240 V AC, 50/60 Hz - High-voltage DC input: 240 V DC
Input voltage range [V] - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] 6 A
CPU 1.1 GHz, 2 cores
Memory 2 GB
Flash memory Physical space: 1 GB
Console port RJ45
Eth Management port Not supported
USB Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
Maximum PoE power consumption [W] 400
PoE+ power interfaces 24
Full load PoE power consumption 15.4W (802.3af) 24
Full load PoE power consumption 30W (802.3at) 13
Certification EMC certification Safety certification Manufacturing certification
Adatok
Gyártó:
Huawei eKit
Gyártói cikkszám:
98012376
EAN:
6901443450084
Garancia:
36 hónap
Gyártó:
Huawei eKit
Rack-be szerelhető:
Van
Portok száma:
52
Port típusa:
1Gb Réz;10Gb SFP+
PoE (Power over Ethernet):
Van
EAN:
6901443450084
KSH szám:
8517620000
SFP port:
4
