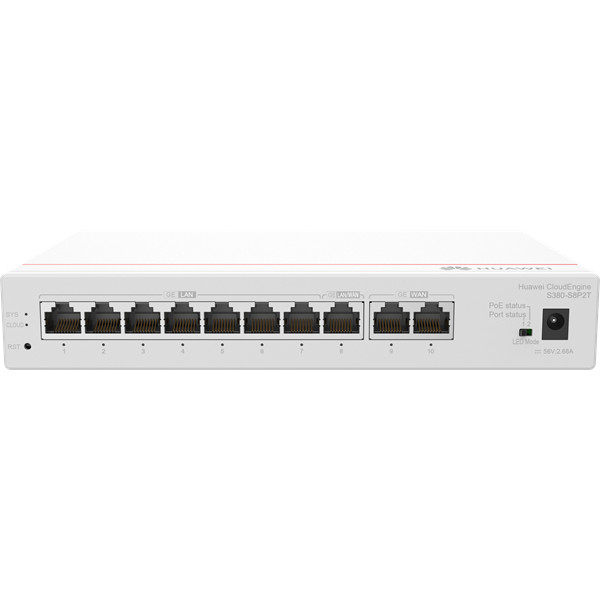

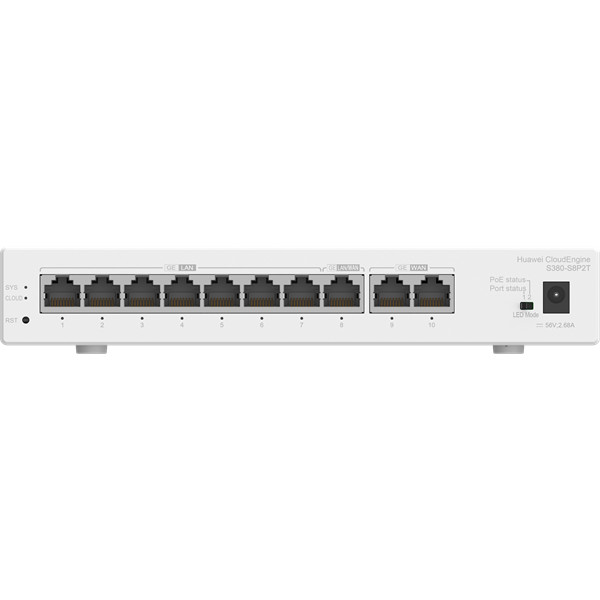

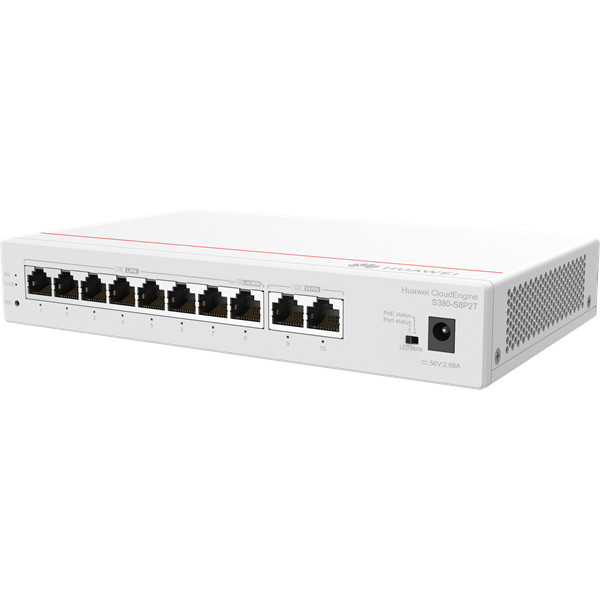

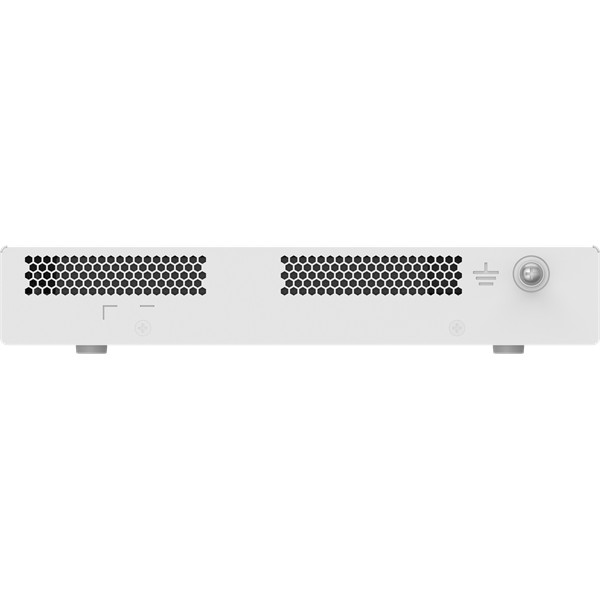

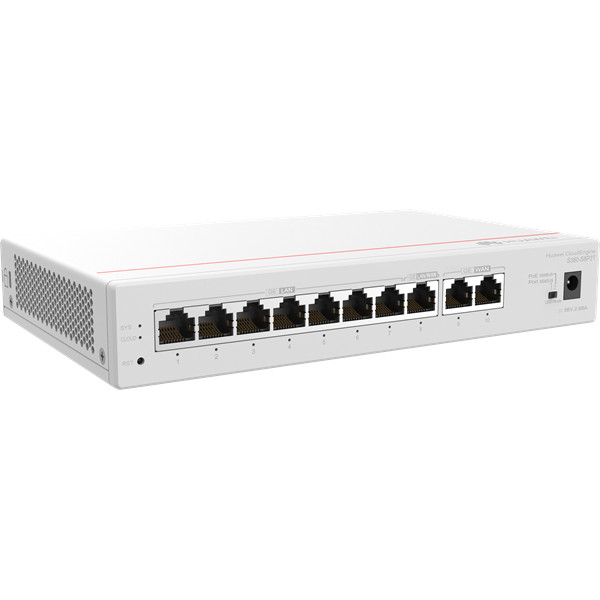

Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
18
Nettó listaár: 132 000 Ft

(bruttó 167 640 Ft)



Nettó listaár: 107 880 Ft

(bruttó 137 008 Ft)


Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T

18
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Raktáron 3 db
18
Nettó listaár: 132 000 Ft

(bruttó 167 640 Ft)



Nettó listaár: 107 880 Ft

(bruttó 137 008 Ft)


Megtakarítás 30 632 Ft
Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T

Garancia: 5 év el- és visszaszállításos alkatrészcsere-garancia


Egyedi árazási igény illetve műszaki, konfigurációs, kompatibilitási kérdés esetén kérjük vegye fel velünk a kapcsolatot email-ben vagy telefonon.
Részletek
First supported version V600R022C10
Integrated fixed device Y
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.)
Chassis height [U] 0.8
Installation type Desk mounting,Wall mounting
Weight without packaging [kg(lb)] 1.5 (3.31)
Weight with packaging [kg(lb)] 1.8 (3.97)
Typical power consumption [W] 12.4
Typical heat dissipation [BTU/hour] 42.3
Maximum power consumption [W] 145.8 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour] 497.5
Static power consumption [W] 7.53
100% power consumption [W] 12.52
MTBF [year] 65.36
MTTR [hour] 2
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30
Noise at high temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans), < 20
Number of card slots 0
Number of power slots 0
Number of fans modules 0
Maximum number of physical ports on the entire device 10
Maximum number of 100GE ports 0
Maximum number of 40GE ports 0
Maximum number of 25GE ports 0
Maximum number of 10GE ports 0
Maximum number of 5GE ports 0
Maximum number of 2.5GE ports 0
Maximum number of GE ports 10
Maximum number of FE ports 10
Dedicated stack port Not supported
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Power adapter
Rated input voltage [V] Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC
Input voltage range [V] Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A] 2.68 A
CPU Quad-core, 800 MHz
Memory DDR4: 512 MB
Flash memory NAND Flash: 512 MB
Storage -
Console port Not supported
Eth Management port LAN port
USB Not supported
Hardware real-time power detection Not supported
Dying gasp Not supported
RTC Not supported
RPS input Not supported
Complete device sleeping Not supported
Service port surge protection [kV] Common mode: ±4 kV
Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof) IP20
Types of fans None
Heat dissipation mode Natural heat dissipation
Airflow direction -
PoE Supported
Maximum PoE power consumption [W] 124 W
PoE+ power interfaces 8
PoE++ power interfaces -
Full load PoE power consumption 15.4W (802.3af) 8
Full load PoE power consumption 30W (802.3at) 4
Full load PoE++ power consumption 60W (802.3bt) -
Full load PoE++ power consumption 90W (802.3bt) -
Certification EMC certification Safety certification Manufacturing certification
Adatok
Gyártó:
Huawei eKit
Gyártói cikkszám:
98012180
EAN:
6901443425679
Garancia:
36 hónap
Gyártó:
Huawei eKit
Rack-be szerelhető:
Nincs
Switch típus:
Fixed port
Portok száma:
10
Port típusa:
1Gb Réz
Switching kapacitás:
16
PoE (Power over Ethernet):
Van
EAN:
6901443425679
KSH szám:
8517620000
SFP port:
1
